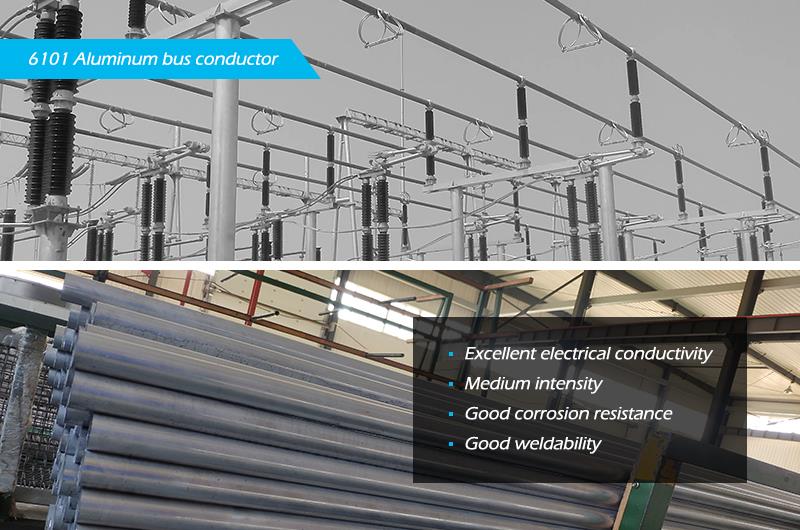

extra long 6101 Aluminum bus conductor belong to Al-Mg-Si series heat-treatable strengthening alloy, with excellent electrical conductivity and medium strength, good corrosion resistance and weldability, often used for processing. High-strength busbar conductors. The diameter of the pipe is 50-600mm, and the length can reach 22 meters/piece.
Chemical composition of extra long 6101 Aluminum bus conductor
Al (minimum value): margin
Si: 0.30~0.7
Fe: ≤0.50
Cu: ≤0.10
Mn: ≤0.03
Mg: 0.35~0.8
Cr:≤0.03
Zn:≤0.10
B:≤0.06
Ti:—
Other elements not specified: each: ≤0.03; total: ≤0.10
Application of extra long 6101 Aluminum bus conductor
extra long 6101 Aluminum bus conductor not only have higher hardness and mechanical properties, but also have higher electrical properties, and are often used to process high-strength busbar conductors.
