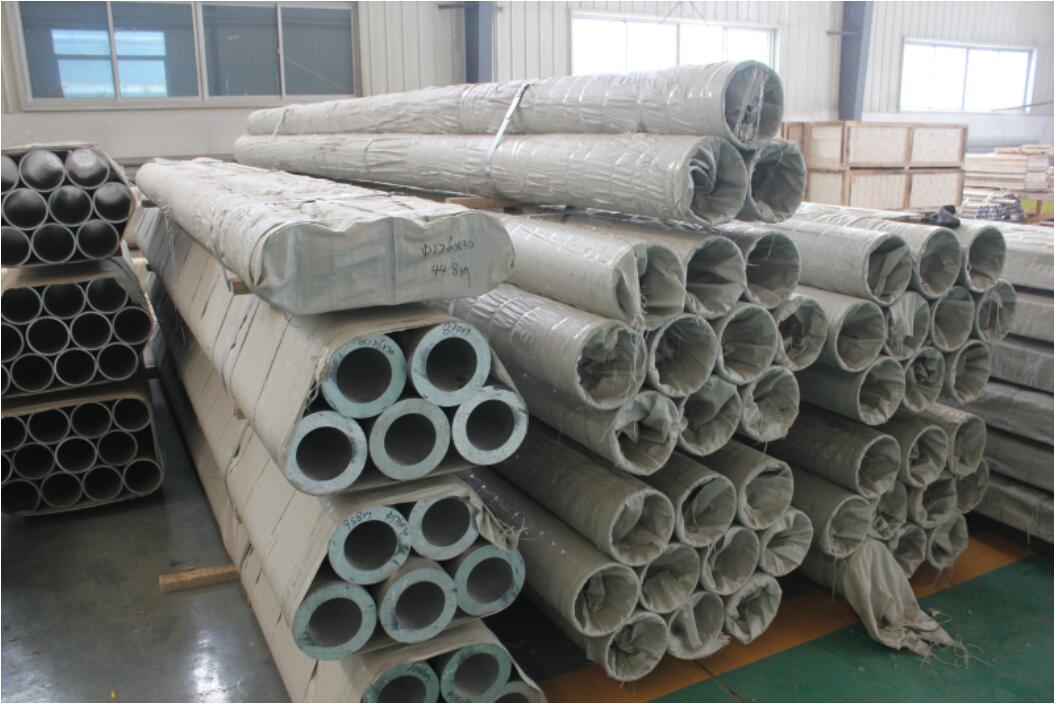

The High quality Aluminium Tubing Busbar is extruded from pure aluminum or aluminum alloy and is hollow along its length. Common alloys for aluminum tubular busbars are 6063, 6061 and 6101, 6101B and so on. 6063 alloy is widely used in outdoor high-voltage substation bus tubes due to its excellent mechanical and electrical properties. In the case of high strength and low conductivity, 6061 aluminum alloy busbar tubes are used. In the case of high conductivity and minimum mechanical loss, use 6101 alloy busbar tube.
Specifications of High quality Aluminium Tubing Busbar:
Executive standard: GB/T27676-2011 aluminum and aluminum alloy busbar conductor or ASTM B 317M-07
Alloy: 6063, 6101, 6061, 6101B, etc.
Status: T6, T5, etc.
Surface: The product has a hollow tubular structure with a bright surface, beautiful appearance and uniform size.
Outer diameter: from 60mm to 450mm.
Wall thickness: 3mm to 15mm.
Length: The longest conductor of a single busbar tube can be up to 15 meters.
Application of High quality Aluminium Tubing Busbar
High quality Aluminium Tubing Busbar are mainly used in the connection of conductors between power grid transmission wires and substation transformers in power construction projects, jumpers in power transmission lines, and connecting conductors in power equipment.
