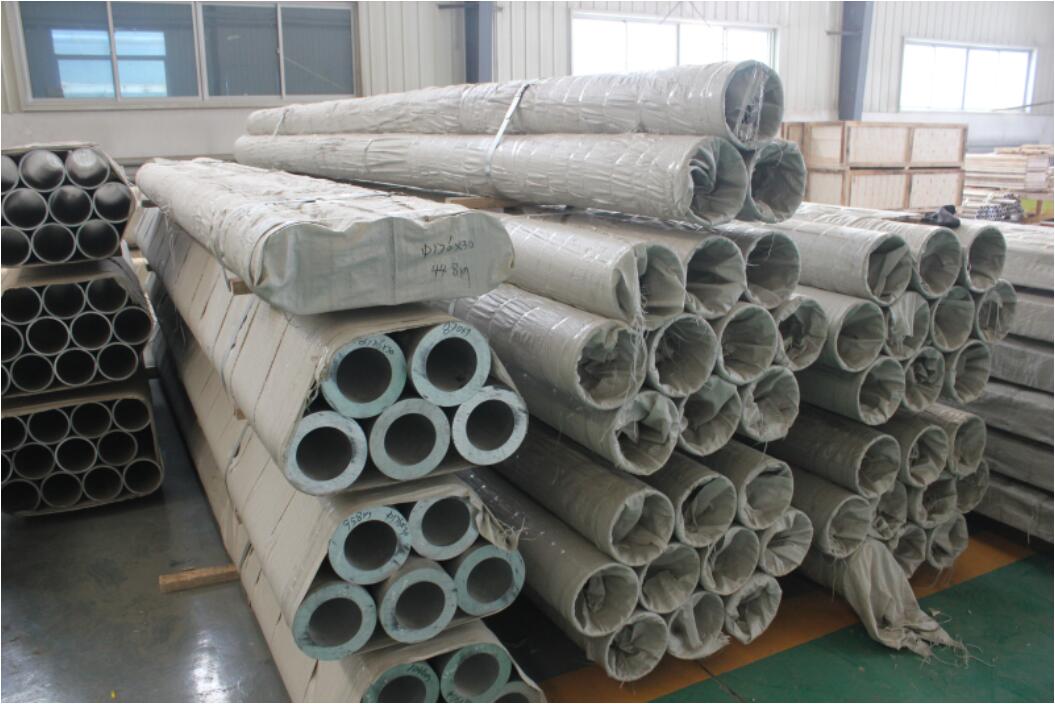

6101 conductive aluminum tube is often used for processing high-strength busbar conductors. The electrical conductivity is greater than 55% IACS, the tensile strength reaches 172-221 MPa, and the yield strength reaches 138-186 MPa. The busbar conductor not only has higher hardness and mechanical properties, but also has higher electrical properties.
Chemical composition of 6101 conductive aluminum tube
Al (minimum value): margin
Si: 0.30~0.7
Fe: ≤0.50
Cu: ≤0.10
Mn: ≤0.03
Mg: 0.35~0.8
Cr:≤0.03
Zn:≤0.10
B:≤0.06
Ti:—
Other elements not specified: each: ≤0.03; total: ≤0.10
Application of 6101 conductive aluminum tube
6101 conductive aluminum tube is often used for processing high-strength busbar conductors.
