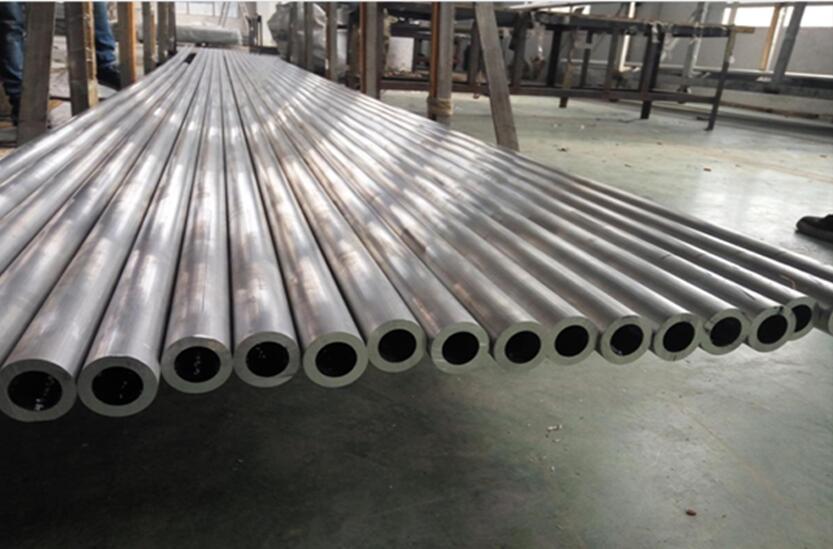

6101 aluminum busbar pipe tube is an Al-Mg-Si series alloy, which is a kind of electrical alloy with a long history and the most widely used. Because the solubility of M92 Si in the 6101 alloy increases with the rise of temperature, it can be treated by solution treatment and artificial Aging improves the strength of the alloy while still having good electrical conductivity.
The chemical composition of 6101 aluminum busbar pipe tube
Al (minimum): margin
Si: 0.30~0.7
Fe: ≤0.50
Cu: ≤0.10
Mn: ≤0.03
Mg: 0.35~0.8
Cr: ≤0.03
Zn: ≤0.10
B: ≤0.06
Ti:—
Other elements not specified: each type: ≤0.03; total: ≤0.10
Application of 6101 aluminum busbar pipe tube
6101 aluminum busbar pipe tube is specially used to produce high-strength electric busbars and various conductive materials.
