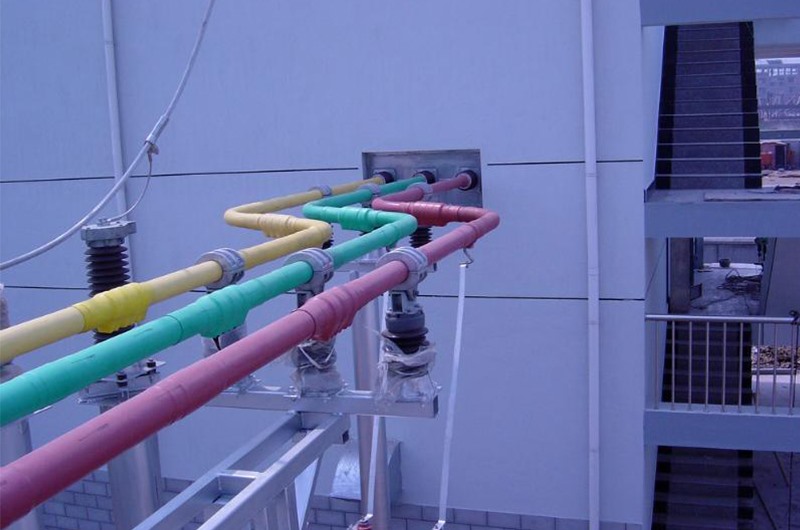

6101 T6 Aluminum Tubular Busbar belongs to the Al-Mg-Si series heat-treatable and strengthened alloy. It has excellent electrical conductivity and medium strength, and has good corrosion resistance and weldability. It is often used for processing high-strength bus conductors. Bus conductors must not only have higher hardness and mechanical properties, but also have higher electrical properties.
The chemical composition of 6101 T6 Aluminum Tubular Busbar
Al (minimum): margin
Si: 0.30~0.7
Fe: ≤0.50
Cu: ≤0.10
Mn: ≤0.03
Mg: 0.35~0.8
Cr: ≤0.03
Zn: ≤0.10
B: ≤0.06
Ti:—
Other elements not specified: each type: ≤0.03; total: ≤0.10
Mechanical properties of 6101 T6 Aluminum Tubular Busbar:
Tensile strength ≥200MPa,
Yield strength ≥172MPa,
Elongation after breaking ≥10%,
Conductivity ≥55％IACS
