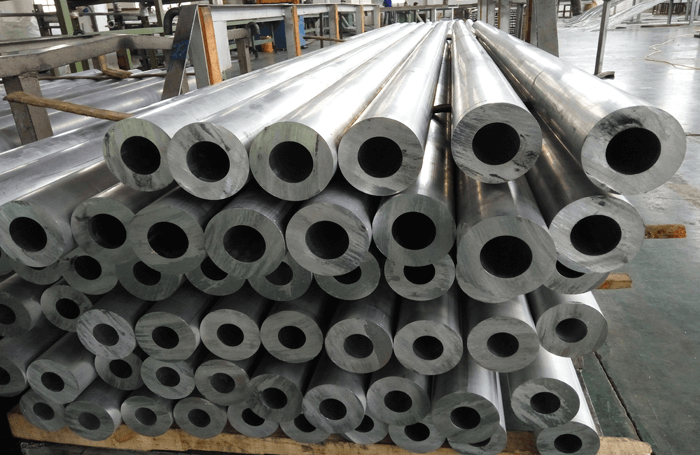

The 6063 aluminum bus bar tube has a hollow tube-shaped structure with a glossy surface, beautiful appearance and uniform size. The outer diameter size ranges from φ60mm to φ300mm; the wall thickness ranges from 3mm to 12mm, and the length of a single root is up to 15 meters.
The chemical composition of 6063 aluminum bus bar tube
Si: 0.20-0.6
Fe: 0.35
Cu: 0.10
Mn: 0.10
Mg: 0.45-0.9
Cr: 0.10
Zn: 0.10
Ti: 0.10
Al: margin
Others: Single: 0.05 Total: 0.15
Performance of 6063 aluminum bus bar tube
6063 aluminum bus bar tube has good plasticity, excellent weldability and corrosion resistance, especially no stress corrosion cracking tendency. At the same time, the quenching sensitivity of 6063 aluminum bus bar tube is relatively low. After heat treatment, better electrical conductivity and higher mechanical properties are obtained.
