6063 T6 aluminum magnesium alloy tube bus
This series of products has unique material properties (LDRE rare earth aluminum alloy, 6Z63 heat-resistant aluminum alloy, etc.), is a new type of energy-saving bus conductive material, is the traditional steel core aluminum wire, groove type, rectangular aluminum bus substitute products.
The main properties of the 6063 T6 aluminum magnesium alloy tube bus are as follows:
1) Tubular conductor (bus) adopts a series of advanced technologies, such as domestic advanced hot-top casting seamless pipe, with smooth surface, high dimensional precision, high tensile strength, and is not easy to produce discharge and deformation;
2) The products are made of rare earth and heat-resistant aluminum alloy developed by the company (which has been declared national invention) and have excellent processing, welding, electrical conductivity and heat-resistant properties.The products have been appraised by the scientific and technological department and reached the international advanced level.
3) Good convection heat dissipation condition, low temperature rise, small loss, strong conductive capacity, high carrying capacity;
4) High heat resistance, can improve the working temperature of the tube bus (working temperature up to 150℃-200℃), conductor at high temperature has a higher mechanical strength, improve the safety and reliability of the power transmission and transformation system;
5) The floor space of installation is small, and the combined pipe bus is 1/3 of the floor space of flexible conductor;
6) Corrosion resistance, not easy to cover ice, strong disaster resistance, long service life (first used in ice melting device in China);
7) Easy to install, beautiful appearance, safe, stable, reliable operation, easy to repair and maintenance.
6063 T6 aluminum magnesium alloy tube bus

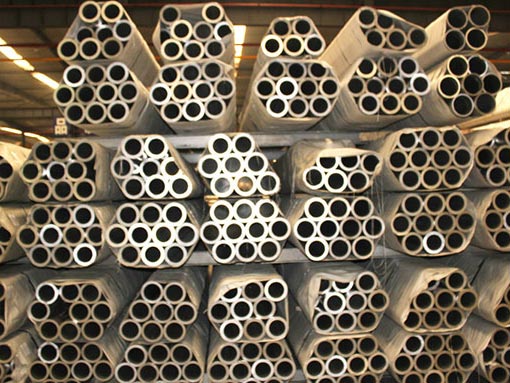

The product is hollow tubular structure with glossy surface, beautiful appearance and uniform size.The outer diameter ranges from 60mm to 300mm;The wall thickness ranges from 3mm to 12mm, with a single length of up to 15m.The actual picture is as follows:
Technical requirements for tube busbars of 6063-T6 Aluminum-magnesium alloy:
1) The pipe orifice is flat and perpendicular to the axis.
2) The tube bus length deviation is a positive error: +15 ~ +25mm
3) Straightening spiral marks that do not affect the outside diameter of the pipe bus are allowed, and the depth is not more than 0.5mm
4) Bending degree of tube bus: M /L<The 2.0 mm
5) The spacing between tube mother and matching liner shall not be greater than 0.5mm and shall ensure installation requirements.
6) The bus surface is smooth and smooth, without cracks, creases, inclusions, deformation and distortion.
7) Tube master material adopts 6063G series, state: T6.
8) Elastic modulus value to control the deflection value after installation within the specified range.
