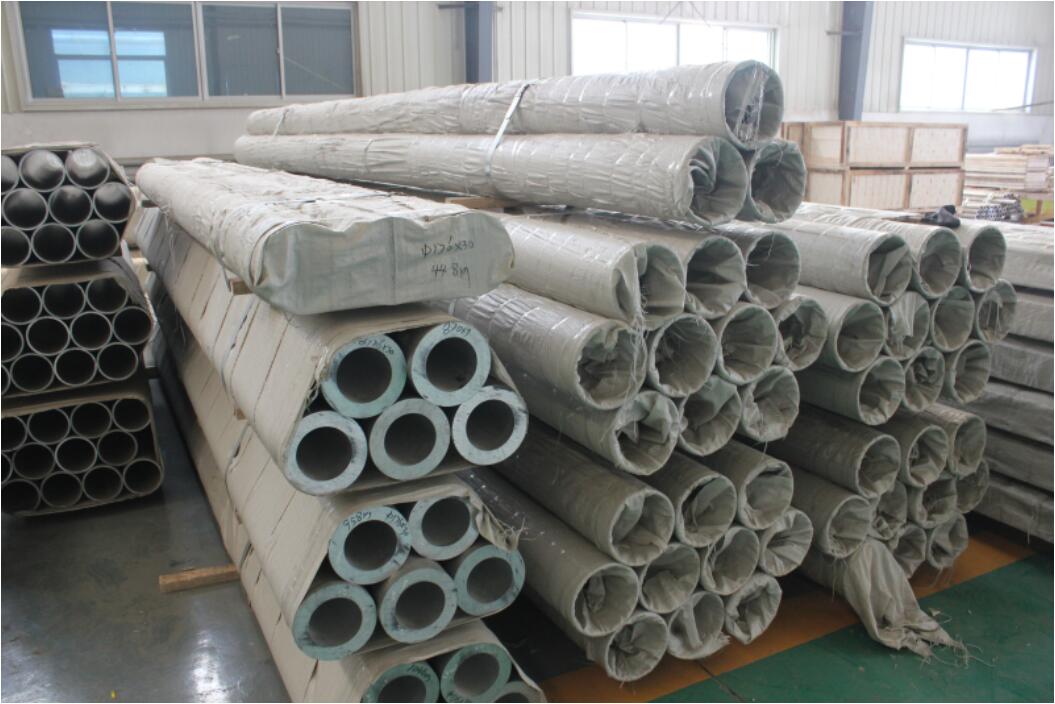

6063 Aluminum substation bus pipe has a relatively balanced magnesium and silicon content, its solution treatment temperature is high, the quenching sensitivity is low, the extrusion performance is good, and because of the low alloying element content, its conductivity is high, and it is widely used Manufactured in tubular busbars. Welding is the main installation method for aluminum alloy tubular busbars in substations. The quality of the welded joints of aluminum alloy tubular busbars formed therefrom plays an important role in the safe and reliable operation of power transmission and transformation systems and power equipment.
The chemical composition of 6063 Aluminum substation bus pipe
Si: 0.20-0.6
Fe: 0.35
Cu: 0.10
Mn: 0.10
Mg: 0.45-0.9
Cr: 0.10
Zn: 0.10
Ti: 0.10
Al: margin
Others: Single: 0.05 Total: 0.15
Application of 6063 Aluminum substation bus pipe

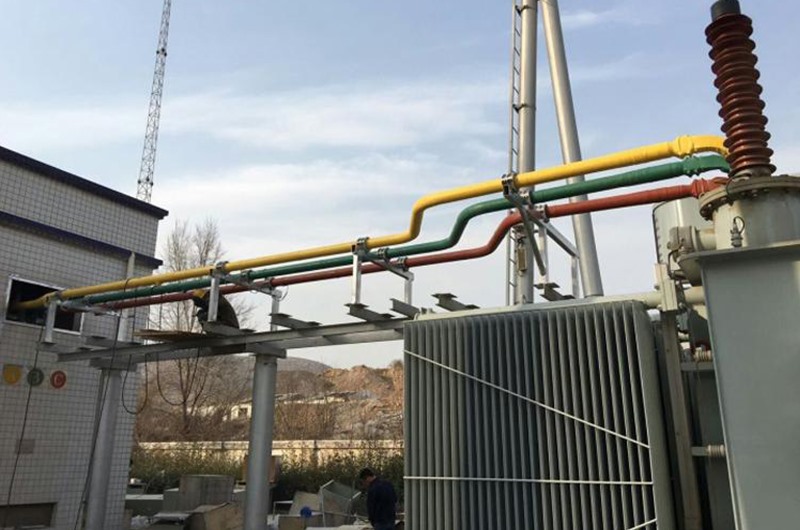

6063 Aluminum substation bus pipe is widely used in tubular busbar manufacturing, one of the key equipment (materials) in the power transmission and substation system.
