6061 aluminum bus conductor manufactured by special processing techniques such as hot top casting, transverse perforation hot rolling, deformation heat treatment, cold drawing, etc., can obtain excellent strength and performance as well as good electrical conductivity through heat treatment.

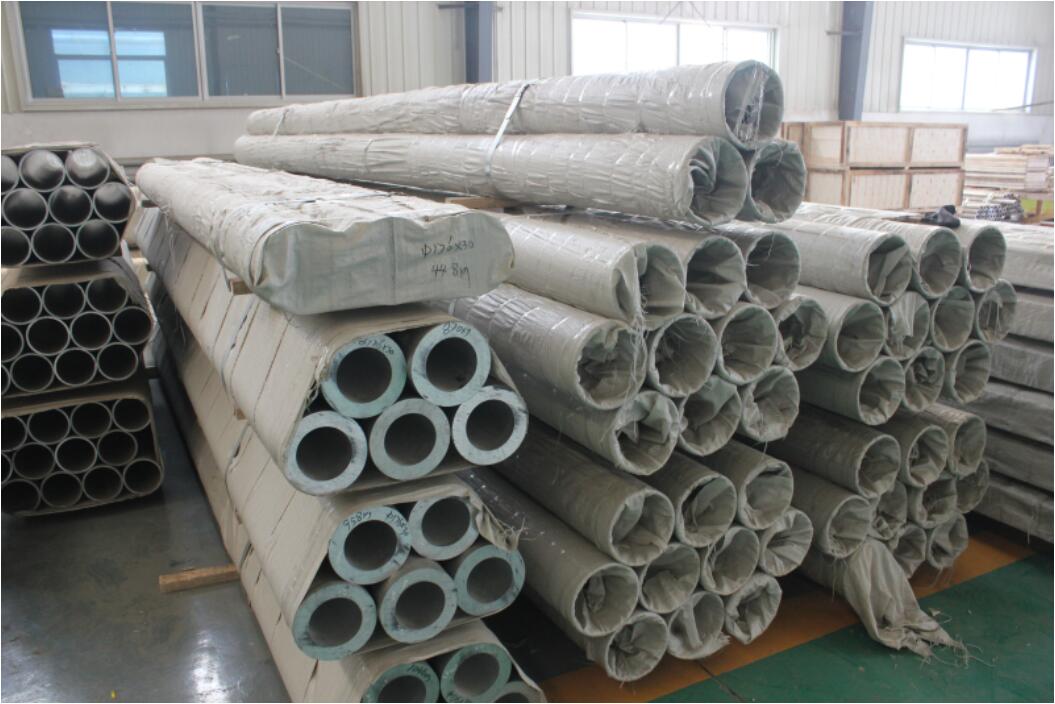

Product introduction of 6061 aluminum bus conductor
The 6061 aluminum bus conductor produced by our company includes 400V tube bus, 660V tube bus, and 1kV tube bus.
2kV tube bus, 6kV tube bus, 10kV tube bus, 35kV tube bus, 45kV tube bus, 72kV tube bus.
The chemical composition of 6061 aluminum bus conductor
Cu: 0.15～0.4
Mn :0.15
Mg: 0.8～1.2
Zn: 0.25
Cr:0.04～0.35
Ti :0.15
Si: 0.4～0.8
Fe :≤0.7
Al: margin
Use of 6061 aluminum bus conductor
The 6061 aluminum bus conductor is mainly used in the conductor connection between the power grid transmission wire and the transformer of the substation in the electric power construction project, the jumper in the transmission line, and the connecting conductor in the power equipment. Used as an overcurrent conductor in a large current DC ice melting device.
