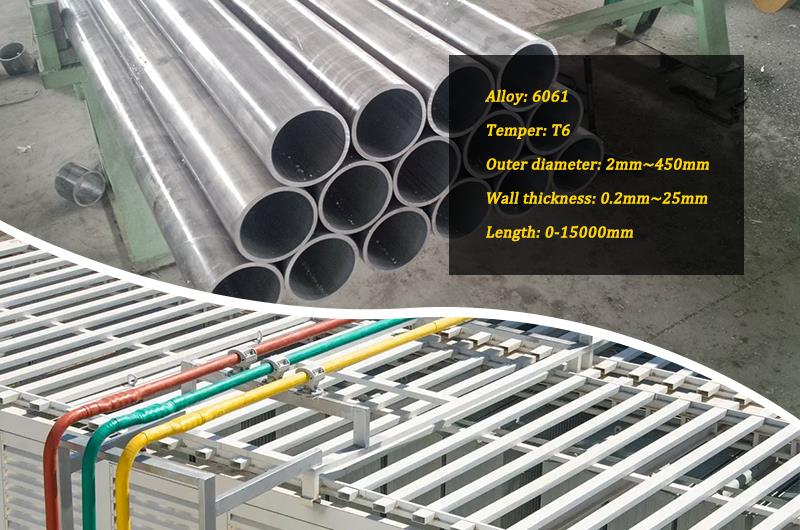

* Alloy: 6061
* Temper: T6
* Outer diameter: 2mm~450mm
* Wall thickness: 0.2mm~25mm
* Length: 0-15000mm
Chemical Composition of 6061 T6 Tubular bus conductor
Cu: 0.15～0.4
Mn:0.15
Mg:0.8～1.2
Zn:0.25
Cr:0.04～0.35
Ti:0.15
Si: 0.4～0.8
Fe :≤0.7
Al : margin
Product main features of 6061 T6 Tubular bus bar:
● The tube mother is a hollow conductor, with good convection heat dissipation, low temperature rise and low loss;
● Small skin effect coefficient, uniform current distribution, current density up to 1.4A/mm2;
● It is beneficial to improve the corona inception voltage;
● Simple installation and maintenance, convenient connection; small footprint, 1/3 of the flexible wire;
● The internal grains are dense, and the corrosion resistance is strong; it is not easy to be covered with ice and has strong disaster resistance;
