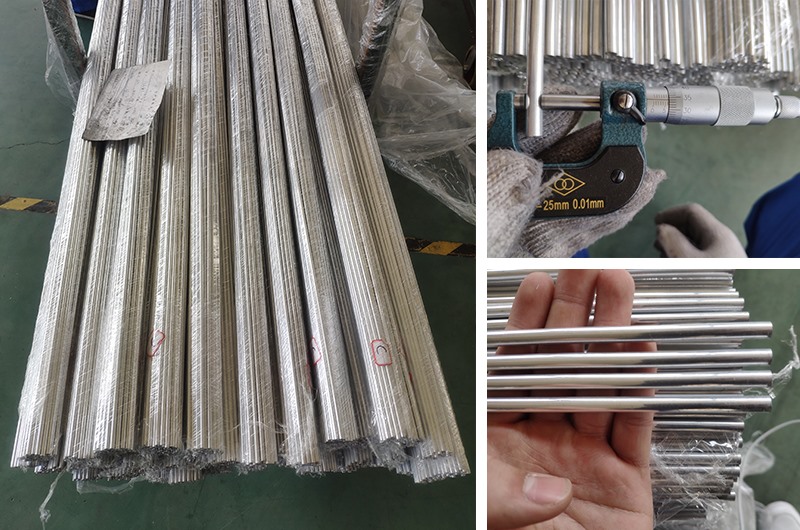

6061 T6 Aluminum Tubular Busbar is a 6061 aluminum alloy extruded into a hollow metal tubular aluminum conductor along its longitudinal full length, and then the T6 state is the state of artificial aging after solution treatment. After heat treatment, it can obtain excellent strength and performance, and good electrical conductivity.
Chemical composition of 6061 T6 Aluminum Tubular Busbar
Cu: 0.15～0.4
Mn:0.15
Mg:0.8～1.2
Zn:0.25
Cr:0.04～0.35
Ti:0.15
Si: 0.4～0.8
Fe :≤0.7
Al : margin
Product Specifications for 6061 T6 Aluminum Tubular Busbar
* Alloy: 6061
* Status: T6
* Outer diameter: 2mm~450mm
* Wall thickness: 0.2mm~25mm
* Length: 0-15000mm
