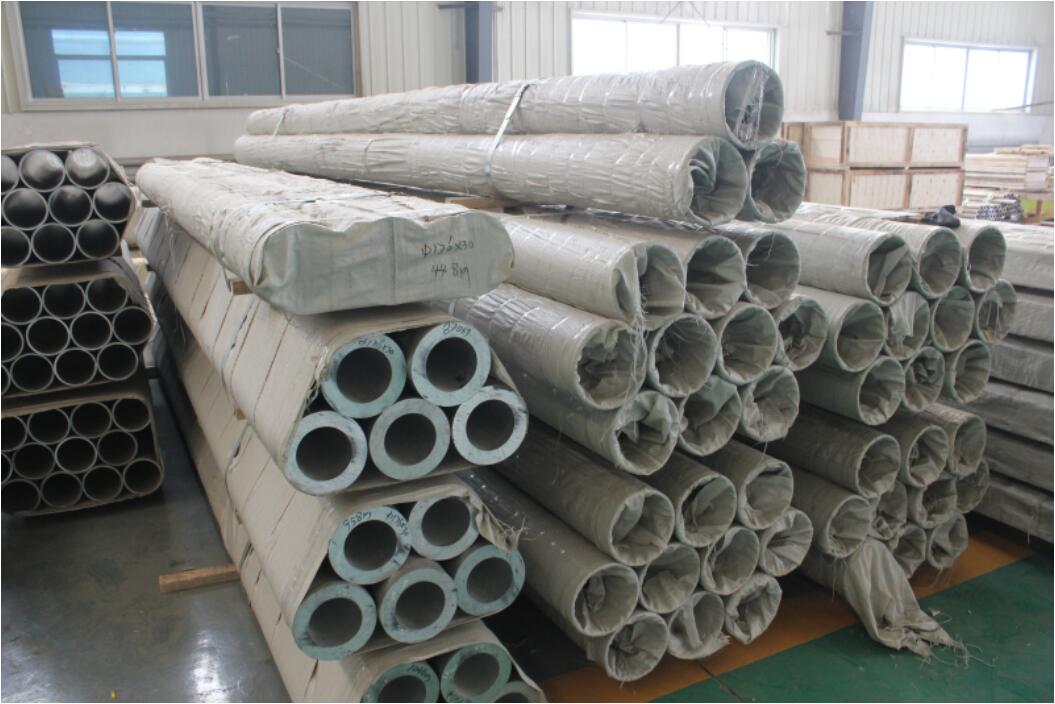

The 6061 Aluminum tubular busbar is a metal tubular aluminum conductor made of 6061 aluminum alloy that has been extruded and processed into a hollow longitudinal length.
Through heat treatment, excellent strength and performance, as well as good electrical conductivity can be obtained.
The 6061 Aluminum tubular busbar produced by our company includes 400V tube bus bar, 660V tube bus bar, and 1kV tube bus bar.
2kV tube bus, 6kV tube bus, 10kV tube bus, 35kV tube bus, 45kV tube bus, 72kV tube bus.
Chemical composition of 6061 Aluminum tubular busbar
Cu: 0.15～0.4
Mn :0.15
Mg: 0.8～1.2
Zn: 0.25
Cr :0.04～0.35
Ti :0.15
Si: 0.4～0.8
Fe :≤0.7
Al: margin
The use of 6061 Aluminum tubular busbar
The 6061 Aluminum tubular busbar is used to process high-strength bus conductors. It is mainly used in the connection of conductors between power grid transmission wires and substation transformers in power construction projects, jumpers in power transmission lines, and connecting conductors in power equipment.
